Choose the cover from the axis motion, contaminant, available envelope and duty cycle—not from a catalogue photograph or a maximum-speed claim. By the end, you will have a measurement checklist, a construction shortlist and a quotation specification that accounts for fit, service access and failure risks in Pune conditions.
Key takeaways
- Match cover construction to axis motion and the specific contaminant.
- Measure full travel, compressed height and access clearances before requesting quotes.
- Compare protection, moving mass, folded height and maintenance access together.
- Test interfaces, wipers and folds with real chips, coolant, heat and motion.
Start with the axis motion and the contaminant
Choose the construction only after identifying the axis motion and contaminant. Specify abrasive steel chips, aluminium fines, grinding dust, tramp oil and water-miscible coolant; coolant can carry fines into folds, wipers and guide channels. Record heat, sparks and laser debris before choosing steel, stainless steel, aluminium, coated fabric, elastomer or spring steel.
A way cover for industrial equipment in Pune must also match gravity. Horizontal, vertical and inclined guideways need different chip-retention, drainage and support arrangements; spindle, shaft and rod applications need radial protection and compact movement instead.
| Option | Choose it when | Main limitation |
|---|---|---|
| Formed or welded steel telescopic cover | Hot, sharp chips and heavy coolant exposure attack the guideway | Mass, section inertia and accurate stops |

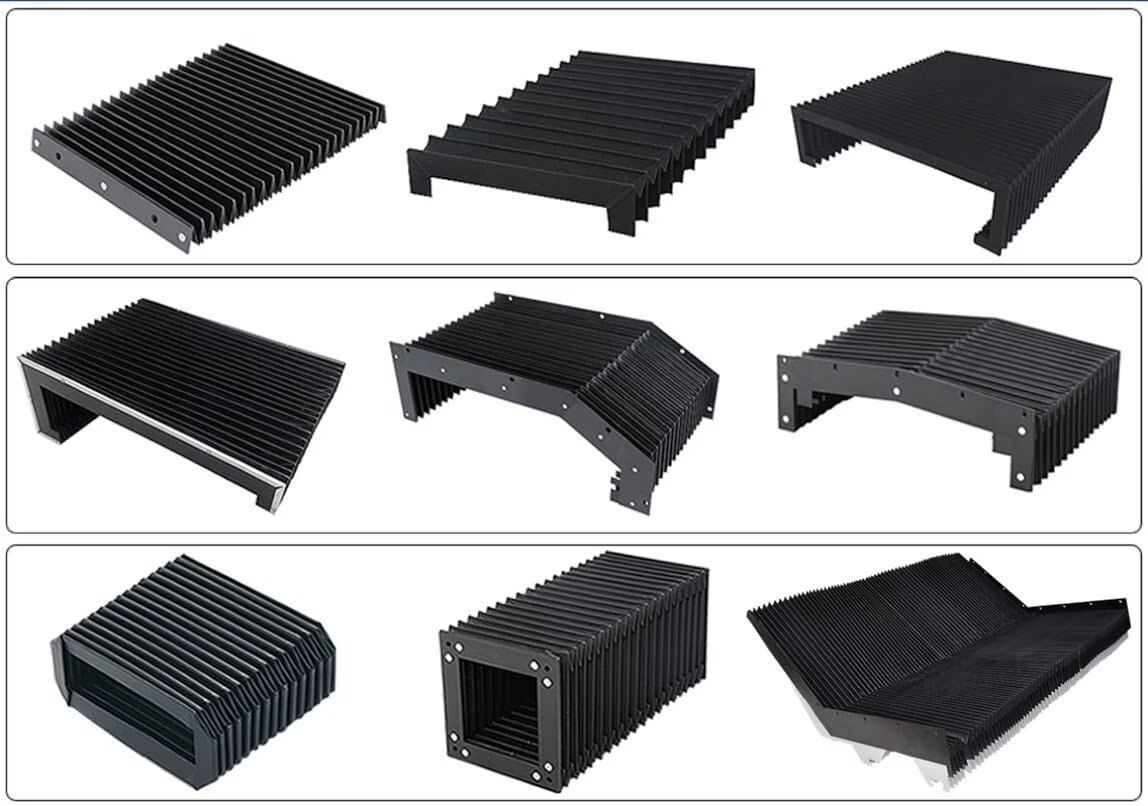

| Fabric or polymer bellows | Low mass, complex geometry and moderate contamination matter | Abrasion, buckling, fold wear and chemical attack |
| Aluminium-strip apron or roller cover | A long opening requires limited folded height | Strip separation and lower resistance to hot sharp chips |
| Telescopic spring cover | Spindles, columns, shafts, threads and rod guides need compact protection | Spring fatigue and corrosion |
Use this decision tree: select steel for impact and thermal duty; select bellows for geometry and low moving mass; select an apron or roller for long travel with little storage space; select spring steel for spindle or rod protection.
Do not treat a way cover as chip evacuation or cable management. Packed chips can lift sections, while a cable carrier controls cable and hose bend radius. These are separate functions.
Measure the full travel envelope before asking for a quotation
Axis dimensions alone produce bad quotations: a cover can fit the stroke yet collide with a clamp, wiper or adjacent axis. A way cover for equipment manufacturers in Pune needs a complete motion and interface record.
1. Record guideway length and width, stroke, open and closed dimensions, travel speed, acceleration, cycle rate, mounting orientation, available installation space, load, chip type, coolant type, temperature and operating cycle. Use fixed machine datums, not painted edges, and map the cover’s maximum compression and extension.
2. For a telescopic cover, add section count, collapsed length, extension length, moving and fixed ends, allowable load and every point where sections stop. For a bellows, record open length, closed length, width, height, fold pitch, minimum bend radius, motion direction and mounting-frame geometry.
3. Measure with the machine at both ends of travel. Check clamps, lubrication points, wipers, tooling, guarding, access panels, adjacent axes and nearby moving parts; a static midpoint measurement will miss end-of-stroke interference.
Send a drawing, not just axis dimensions. Show reference datums, mounting-hole pattern, moving and fixed ends, service clearances, access-panel space and drain locations. Mark where wipers and lubrication points need access, because a cover that seals the way but blocks maintenance will be removed or damaged in service.
Compare protection against mass, folded height and maintenance access
The shortlist turns on protection level and motion cost, not material alone. Compare extension length, folded height, acceleration capacity, moving mass and service access at the same time.
| Option | Protection and geometry | Main trade-off |
|---|---|---|
| Telescopic steel | Resists impact, heat and sharp chips; suits severe way contamination | High mass and section inertia demand accurate stops, guides and alignment |
| Bellows | Low mass and adaptable geometry for complex paths | Abrasion, buckling, fold wear and chemical limits reduce life |
| Aluminium-strip apron or roller | Conserves folded volume across long openings | Strips can separate; sharp hot chips can penetrate; access for tensioning and cleaning is essential |
| Spring steel | Compact protection for shafts, rods and threads | Fatigue, corrosion and difficult replacement access require attention |
Bellows fabric names do not prove compatibility. Request data for the actual water-miscible coolant concentration, cleaning chemicals, tramp oils, operating temperature, sparks and chip temperature; PVC-, polyurethane-, aramid- and PTFE-coated fabrics each need evidence for that duty.
Specify wipers as replaceable wear parts: name the material, preload, contact geometry and replacement access. Excessive preload raises friction and drive load; low preload admits coolant and chips.
A long apron with low folded height is a poor choice where hot, sharp swarf strikes the strips, while a heavy steel cover is a poor choice for a high-acceleration axis with limited drive capacity.
Include these constraints when comparing way cover options in Pune, then reject any quotation that omits mass, service clearances or access for drains, guides and wiper replacement.
Define the interfaces, then test the cover under real operating conditions
A correctly sized cover fails after installation when its interfaces, hazards and operating loads remain untested. For way cover machine protection in Pune, review it with the guideway, lubrication system, chip conveyor and coolant-management system, not as an isolated enclosure.
1. Mark boundaries around the guideway, lubrication system, chip conveyor, coolant-management system, guarding, tooling and adjacent moving axes. Record mounting-hole patterns, reference datums, moving and fixed ends, service access and drain locations.
If the cover forms part of a guard, assess it within the complete machine under ISO 12100, ISO 14120 and ISO 13857; a supplier drawing is not safety validation.
2. Inspect for chips trapped between sliding boxes, bellows abrasion, apron-strip separation, spring fatigue, coolant ingress at joints, loose or hardened wipers, corrosion, blocked drains, and collision at full compression or extension. Packed chips can lift sections, damage folds and transmit abnormal loads into the machine structure.
3. Acceptance-test the cover through its complete stroke at the specified speed and acceleration, both dry and with representative chips and coolant. Check drive load, rattling, section collision, fold interference, leakage, chip carry-through and fastener retention. A static fit check misses these failures.
4. Set inspection triggers by cycle count and contamination, not calendar time alone. Clean drains and replace wipers, scrapers and damaged sections; inspect for abnormal noise, loose fasteners, corrosion, torn bellows and chips beneath overlapping sections.
Turn the shortlist into a comparable Pune quotation
Send every supplier the same specification, then reject replies that replace figures with “high speed” or “maintenance-free.” For way cover for equipment manufacturers in Pune, request a documented performance envelope containing:
- Maximum travel speed, acceleration and cycle rate
- Operating temperature and allowable chip temperature
- Coolant and chemical compatibility
- Expected service life or test-cycle result
- Spare-part lead time and explicit exclusions
Request a general arrangement drawing and interface drawing showing reference datums, mounting-hole pattern, moving and fixed ends, drain paths, wiper specification, folded and extended dimensions, mass and service-clearance requirements. Include access panels, guarding and interference at full stroke.
| Proposal | Compare in the reply |
|---|---|
| Telescopic cover | Section stops, acceleration capacity, collapsed length, chip temperature and allowable load |
| Apron or roller cover | Long-opening coverage, folded volume, strip separation risk and cleaning access |
| Bellows | Fold abrasion, minimum geometry, chemical compatibility and test-cycle evidence |
| Spring cover | Shaft or rod fit, spring fatigue, corrosion protection and replacement method |
A Pune equipment manufacturer can use this package to compare local telescopic, apron, bellows, roller and spring-cover sources. SCUTES INDIA PRIVATE LIMITED can be considered for a drawing-based review of protective covers, bellows, guideway systems or cable-management interfaces; compare its stated values, not labels.
For way cover machine protection in Pune, name the monsoon requirement: material, surface treatment, corrosion-resistance expectation, drain locations and drainage capacity. A blocked drain turns rainwater and coolant into trapped corrosion.
